How to upgrade
TP-LINK ADSL Modem Router
Notice:
• Please verify the hardware version of your device for
the firmware verson. Wrong firmware upgrading may damage your device and void
the
After
you downloaded the firmware form TP-LINK WEBSITE, Please
use
decompression
software such as WinZIP or WinRAR to extract the firmware file to a folder;
• Do
NOT upgrade the firmware via wireless
connection;
• Do NOT turn off the power or cut down the Ethernet cable during
upgrade process;
• Please write down all current settings as a backup and
enter them manually after upgrading.
•
Internet Explorer(IE) is
recommended to upgrade the firmware.
Step 1 Log
into the ADSL Modem Router by typing http://192.168.1.1 in
the address bar of the web browser (such as Internet Explorer, Firefox). The
UserName and Password are both admin
unless you have changed it before

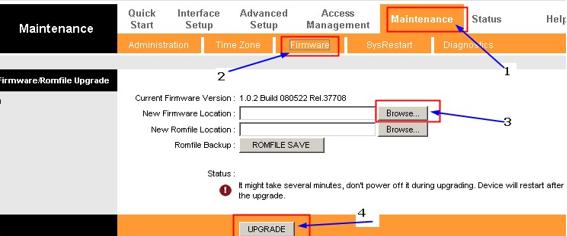

Step 2 Click Maintenance ->Firmware click the Browse button to choose the firmware you already extracted in the
folder.
Step 3 Click the UPGRADE button. The device will reboot automatically after the
upgrading has been finished. Please wait about 3 minutes.
Step 4 Click Status-> Device Info,
verify that the router’s firmware has been upgraded.
Step 6 After restoring factory default,
please login http://192.168.1.1 and re-enter the settings you have written down before
upgrading.
Note: When you update your router please check for back side version then model, go to official website download firmware. Caution for be carefully your router crash its responsibility for you, read manual download firmware and update your router.
Note: When you update your router please check for back side version then model, go to official website download firmware. Caution for be carefully your router crash its responsibility for you, read manual download firmware and update your router.
